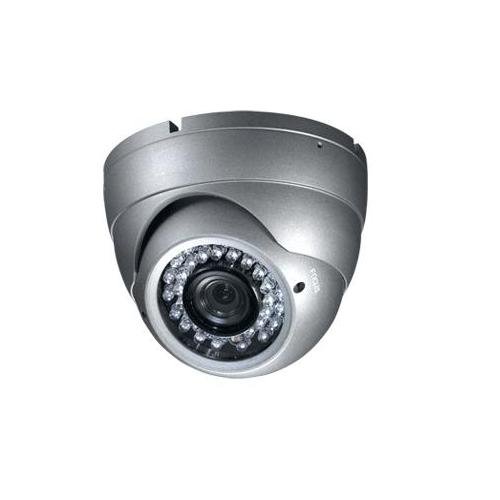

CCTV TD20F 1/3" SONY Super HAD CCD, 420 TV Lines CL Vandal-Proof IR Dome Camera Built-in 3.5 ~ 8 mm Vari-Focal Lens Reviews
Other Picture
CCTV TD20F 1/3" SONY Super HAD CCD, 420 TV Lines CL Vandal-Proof IR Dome Camera Built-in 3.5 ~ 8 mm Vari-Focal Lens Feature
- 1/3" SONY Super HAD CCD Sensor
- Resolution: 420 TVL
- Built-in 3.5 ~ 8 mm Vari-Focal Lens
- 36pcs IR LED (90 ft.IR LED Range)
- Vandal Proof Housing
Model No. TD20F
>Signal System PAL / NTSC
>Image Sensor 1/3" SONY Super HAD CCD
>Horizontal Resolution 420 TV Lines
>Lens 3.5~8 mm Lens
>Min.Illumination 0 LUX(IR On)
>S/N Ratio More than 52dB
>IR Distance 90 ft
>View Angle 45°
>LED wave length 36 unit 840nm Infrared LED
>Average Life 20000hrs, warranty life: 6000hrs
>Water Resistance IP 65
>Video Output Composite Video Output (1.0Vp-p 75OTerminated)
>Synchronizing System Internal / External
>Operation Temperature -20°C to +50°C
>Supplied Power DC 12V ±10%,500 mA
>Weight 1100g
